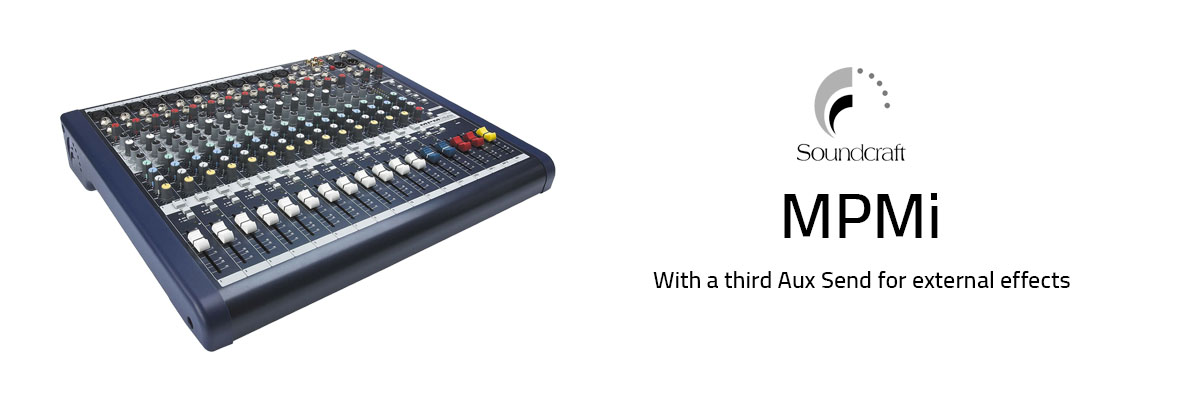

MPMi

Soundcraft's MPMi mixers are compact and ideally equipped for live sound applications including fixed installations, houses of worship and portable PA. The MPMi versions replace the MFXi’s internal FX send with a third Aux send for operators preferring to use external effects. All MPMi mixers include 2 stereo input channels along with a 2-track record output and a 2-track replay input which allows interval music to be easily played from CD, MP3 or other music source.

For increased versatility, each model in the MPMi range has two subgroups as well as a main stereo mix, making control of groups of channels much easier to manage. These are supplemented by 3 Auxiliary busses which can be used for effects sends or to provide a foldback monitor mix for artists.

The MPMi consoles use vertically mounted PCBs which are secured with nutted pots for extra strength, stability and easy servicing. Well-spaced controls provide easy access at those critical control moments, enhanced by clear legending which highlights linked or associated functions.

Sound quality is assured by Soundcraft’s now-legendary GB30 mic preamp and the use of professional condenser microphones is facilitated by the provision of globally switched +48V phantom power. New circuit designs have improved audio quality, and lowered the overall noise floor of the console. An integral universal power supply negates the need for an external power module. Rack ears are included with 12 channel consoles.

MFXi - MPMi: The Differences
MFXi input channels feature an FX send to the internal Lexicon effects processor, along with 2 Aux sends for use with external processors, or to create a monitor mix. MFXi consoles include an additional stereo return to mix with its own level control.

With no internal Lexicon effects, MPMi input channels replace the FX send with a third Aux send for operators preferring to use external effects.

Features

  • Precision GB30 mic pre-amps
  • True, professional +48V phantom power for condenser microphones
  • 2 Group busses
  • Stereo Mix output
  • 12 or 20 mono Mic inputs, all with 2 stereo line inputs
  • Up to 26 inputs to mix
  • 3 Aux sends, globally switchable pre or post-fade
  • Universal internal power supply
  • Optional rack ears (standard on 12 channel consoles)

The addition of a Kensington lock slot on MFXi/MPMi consoles provides a welcome level of security in installations.
