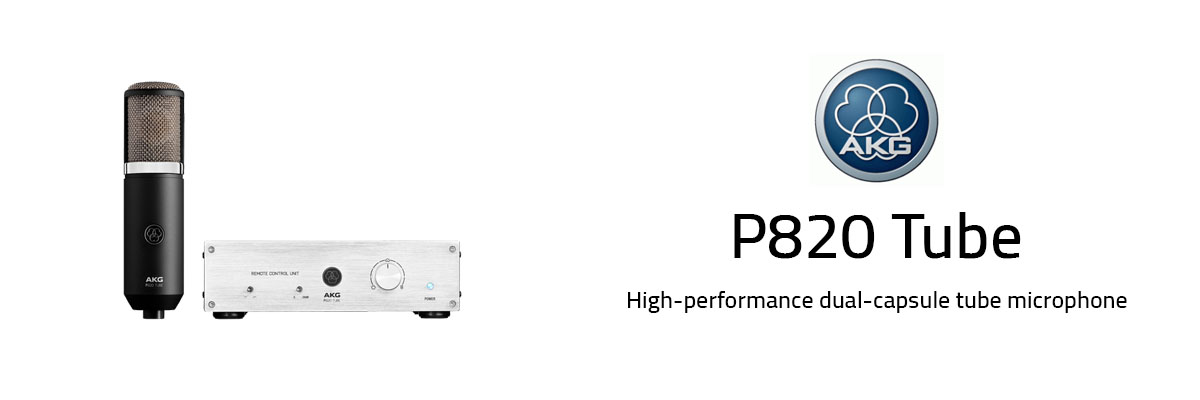

The P820 Tube high-performance multi-pattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.
| Audio frequency bandwidth |
20 - 20000 Hz |
| Equivalent noise level |
16 dB-A |
| Sensitivity |
20 mV/Pa |
| Signal to Noise |
78 dB-A |
| Preattenuation Pad |
-20 dB |
| Bass cut filter |
80 - 12 dB/octave (selectable on remote control unit) |
| Electrical impedance |
<= 200 Ohms |
| Recommended load impedance |
>= 1000 Ohms |
| Polar Patterns |
Cardioid, Omnidirectional, and Figure of eight |
| Powering |
210-240 VAC or 110-120 VAC (selectable) |
| Primary Fuse |
125 mA/250 V slow-blow |
| Length |
212 mm |
| Diameter |
54 mm |
| Net Weight |
765 g |
| Type |
Balanced XLR |
| Gender |
Male |
| Contacts |
3-pin |
| Vocals |
Yes |
| Horns / Woodwinds |
Yes |
